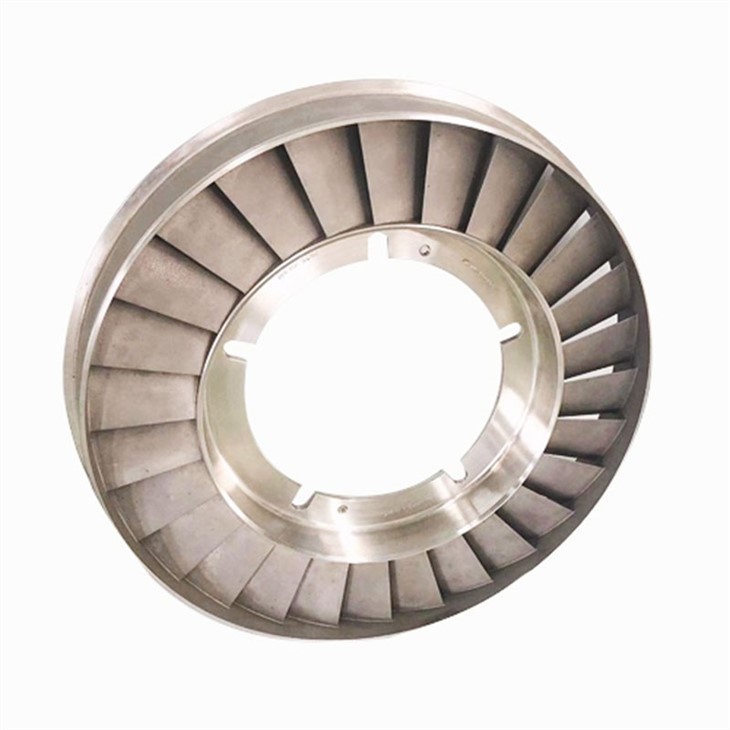

Hastelloy Alloy Series Nozzle Rings

Introduction

Hastelloy Alloy is a type of high-temperature, high-strength, corrosion-resistant alloy commonly used in extreme environmental applications such as chemical, petroleum, aerospace, and other fields. It has excellent corrosion resistance, high-temperature strength, and good processing performance, so it is widely used in engineering.
The nozzle ring of a gas turbine is an important component located in the bearing box, used to support and protect the bearings. Due to the particularity of the working environment, gas turbine nozzle rings require materials with good high-temperature strength, corrosion resistance, and excellent mechanical properties.
Hastelloy alloy has been widely used in gas turbine nozzle rings, mainly due to:

• Corrosion resistance: Hastelloy alloy has excellent corrosion resistance and can resist the erosion of various corrosive media, including high temperature, high pressure, and corrosive gases.
• High temperature strength: Hastelloy alloy has excellent high temperature strength and oxidation resistance, which can maintain good stability and mechanical properties in high temperature environments.
• Wear resistance: Due to the fact that the gas turbine nozzle ring needs to withstand high-speed rotating bearings, the material needs to have good wear resistance, and Hastelloy alloy has high hardness and wear resistance.
• Heat resistance: Hastelloy alloy can maintain stability in extreme high temperature environments and is not easily softened or deformed, ensuring the long-term stable operation of gas turbines.

Overall, the application of Hastelloy alloy in gas turbine nozzle rings can provide reliable protection and support, ensuring the normal operation and long-term stability of gas turbines.

Main series and common material numbers

    1. Hastelloy C Series

• Hastelloy C-276: The main components include nickel (Ni), chromium (Cr), molybdenum (Mo), iron (Fe), etc. It has excellent corrosion resistance and performs well in various acidic and chloride environments.
• Hastelloy C-22: In addition to basic elements such as nickel, chromium, and molybdenum, it also contains a small amount of tungsten (W), which is more stable in some high-temperature and high chloride environments and has excellent corrosion resistance.

    2. Hastelloy B series
Hastelloy B-2: Its main components include nickel, chromium, molybdenum, etc. It is particularly suitable for corrosive environments in strong acidic media, such as sulfuric acid, sulfate, and nitric acid.
Hastelloy B-3: Similar to B-2, but with optimized components, it has better corrosion resistance and thermal stability.
    3. Hastelloy X

• Hastelloy X: Its main components include nickel, chromium, molybdenum, etc. It has excellent high-temperature strength and oxidation resistance, and is suitable for applications in high-temperature gas environments, such as aviation engine components.

    4. Hastelloy G Series

• Hastelloy G-30: The main components include nickel, chromium, iron, etc., which have good corrosion resistance and are particularly suitable for nitrate, chloride, and fluoride environments.

    5.Hastelloy N Series

• Hastelloy N: The main components include nickel, chromium, iron, molybdenum, etc. It has excellent corrosion resistance for high-temperature acidic gas corrosion environments.

Advantages:
The Hastelloy alloy series has excellent corrosion resistance and can be used in various acidic, alkaline, and chloride environments.
Some series have excellent high-temperature strength and oxidation resistance, suitable for applications in high-temperature environments.
Different series of alloys can be selected according to specific needs, with high flexibility.
Disadvantages:
High cost: Compared to ordinary materials, Hastelloy alloy has a higher cost.
Manufacturing difficulty is high: Due to the complexity of alloy composition, the difficulty of processing and manufacturing Hastelloy alloy is high, so the manufacturing cost may increase.
Some alloys may not be as adaptable to certain specific environments as other alloys, and suitable materials need to be selected based on specific engineering requirements.

The application of Hastelloy alloy in the nozzle ring of gas turbine

    1. High temperature resistance performance

• Hastelloy alloys typically have high temperature resistance of up to 1000 ° C or higher, ensuring that the nozzle ring operates stably for a long time in a high-temperature combustion chamber.
• For example, Hastelloy X alloy has excellent high-temperature strength in high-temperature environments, and its usage temperature can reach 1200 ° C or above.

    2. Corrosion resistance performance

• There may be acidic gases and corrosive media in the operating environment of gas turbines. Hastelloy nozzle rings have excellent corrosion resistance and extend their service life.
• The corrosion rate of Hastelloy C-276 alloy in high-temperature acidic environments is usually below 0.1mm/year.

    3. Heat resistance and oxidation performance

• In high-temperature combustion chambers, the Hastelloy nozzle ring needs to resist the influence of thermal oxidation and maintain stable performance.
• The oxidation rate of Hastelloy X alloy is very low in high-temperature oxidation environments, usually below 10 ^ -2 mg/cm2/day.

    4. Fluid dynamics design

• The design shape and diameter of nozzle ring are very important to the shape and flow characteristics of fuel spray, and affect the combustion efficiency and performance.
• By simulating computational fluid dynamics, optimize the aperture and geometric shape of the nozzle ring to improve combustion efficiency.

    5. Precision manufacturing

• The manufacturing of Hastelloy nozzle rings requires highly precise machining and surface treatment to ensure that the size and shape of the nozzle holes meet the design requirements.
• During the manufacturing process, control parameters such as the diameter, angle, and surface roughness of the nozzle hole to ensure the performance stability of the nozzle ring.

Material characteristics

    1. High temperature resistance: Hastelloy alloy has excellent high-temperature strength and stability, which can maintain structural stability in the high-temperature combustion chamber of gas turbines, and is not prone to deformation and thermal expansion, ensuring long-term stable operation of the nozzle.
    2. Corrosion resistance: There is high temperature, high pressure, and corrosive gas corrosion in the working environment of gas turbines, and Hastelloy alloy has excellent corrosion resistance, which can resist the corrosion of fuel and combustion products, and extend the service life of nozzles.
    3. Oxidation resistance: Hastelloy alloy has good oxidation resistance, which can resist oxidation in high-temperature combustion chamber environment, reduce oxidation damage on the surface of the nozzle, and maintain stable performance of the nozzle.
    4. Mechanical properties: Hastelloy alloy has good mechanical properties, including high strength, good ductility and plasticity, and can withstand high pressure and impact loads in the working environment of gas turbines.

Processing

    1. Material preparation: Select appropriate specifications of Hastelloy alloy materials and ensure that the material quality meets the requirements.
    2. Design: Process and design according to the design requirements of the gas turbine and the functional requirements of the nozzle. This includes determining parameters such as the size, shape, and aperture of the nozzle.
    3. Processing preparation: Prepare processing equipment and tools, including CNC machine tools, lathes, milling machines, drilling machines, as well as auxiliary tools such as cutting tools and fixtures.
    4. Rough machining: Use mechanical processing equipment to perform preliminary machining on Hastelloy alloy materials, including sawing, turning, milling, etc., to process the materials into preliminary shapes.
    5. Precision machining: Fine machining is performed on the preliminarily machined nozzle, including precision machining, surface treatment, etc., to ensure the dimensional accuracy and surface quality of the nozzle.
    6. Hole machining: According to design requirements, spray holes or nozzle holes are machined on the nozzle to ensure that fuel can be evenly sprayed into the combustion chamber.
    7. Heat treatment: Heat treat the processed nozzle to improve the material's microstructure and properties, enhance the heat resistance and mechanical properties of the nozzle.
    8. Surface treatment: sandblasting, polishing and other surface treatments are applied to the surface of the nozzle to improve surface smoothness and corrosion resistance.
    9. Quality inspection: Conduct quality inspection on the processed nozzle, including size inspection, appearance inspection, performance testing, etc., to ensure that the nozzle meets design requirements and standards.
    10. Assembly: Assemble the processed nozzle with other components to form a complete gas turbine nozzle component.

As one of the top ten titanium suppliers in China with over 20 years manufacturing experience. We are mainly engaged in titanium raw materials, such as titanium rods, titanium plates, titanium wires and so on.

There are some advantages about our company as follows:

• Our tolerance can reach 0.004mm
• Support OEM customization service.
• Alibaba credit guarantee: $530,000.00 Authorized by Alibaba to guarantee your money and business safe.
• Certificate: ISO9001, ISO14001, CE, EAC, TUV, SGS, SABER, TS16949.
• More than 40+ exporting countries and More than 300+ abroad customers.

Packaging and delivery

Lead time

Samples

Maximum order quantity: 1 piece

Sample price:Negotiation

Order sample

Customization

• Customized logo
• Customized packaging
• Graphic customization

For more customization details, message supplier

Why Choose us

As one of the largest casting factories in China, we have 20 + years of experience. I'd like to introduce our factory in detail for you:

• Adopt technology: lost wax investment casting, sand casting, shell mold casting, lost foam casting, vacuum casting and CNC machining, etc.
• Credit insurance: USD 1,110,000.00. Authorized by Alibaba to guarantee your money and business safe.
• Certificate: ISO9001, ISO14001, CE, EAC, TUV, SGS, SABER, TS16949, CE, EAC, SGS
• More than 40 + exporting countries and More than 300 + abroad customers.

FAQ

Q1.Are you trading company or manufacturer?

A:OBT was established In 2003,speclallzing in the production of casting, CNC machining, forged titanlum alloys, high temperature alloys, brass products and one-stop technical solutions for more than 20 years.

Q2. Do you customize products according to our design drawings ?

A:Yes, we are a professional metal manufacturing factory with an experlenced engineering team that can make customized products according to customer drawings. We can also reverse-engineer drawings based on samples to produce large quantitles of goods.

Q3. WIll my design drawings be safe when you get It?

A:Yes, we will not publish your design to a third party unless your permission Is obtalned. We can sign NDA before you send the drawings.

Q4:How to avold mass order quality problems?

A:Strengthen prior prevention and Inspection of the production and processing process, regard Important processes as the focus of quallty control, and track Inspection and defense throughout the process. It can provide Spectrometer,MM, Tensile testing machine, Impact tester, Hardness tester, X-Ray,Salt spray test box, Pneumatic detection, UV accelerated weathering tester,dynamic balancing, high-temperature tensile testing, fluorescence test,room temperature mechanical property testing and other testing.

Q5.What's your dellvery time?

A:In general, the dellvery time Is within 15-90 days after payment. Q6.What Is the speed of the Impeller? What's the highest temperature It can withstand? A:The Impeller speed can reach 12,000 pm, and the high temperature resistance can reach 1,200 degrees Celslus. Depending on the material, the high temperature resistance of the product Is different.
