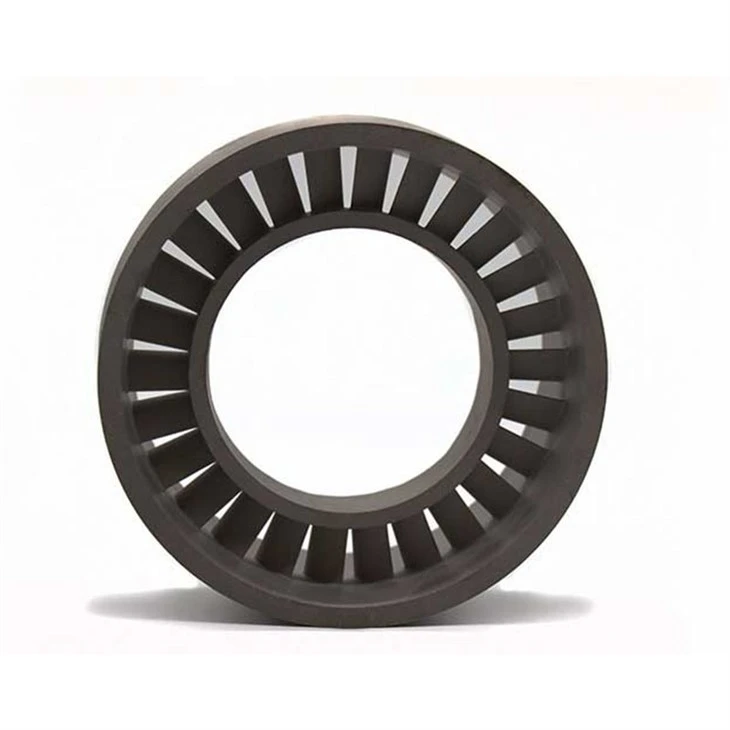

Nickel Alloy Guide Vane for Aero Engine Part

A nickel alloy guide vane is a crucial component used in aerospace engines, specifically in the hot sections of gas turbine engines. Guide vanes, also known as nozzle guide vanes or stator vanes, are stationary blades that are positioned in the path of the hot gases exiting the combustion chamber. They serve several important functions within the engine:

Gas Flow Direction Control: Guide vanes direct the high-velocity hot gases coming from the combustion chamber to flow in the desired direction. This controlled flow helps improve the efficiency of the engine's overall propulsion process.

Energy Extraction: As the hot gases pass through the guide vanes, they transfer some of their kinetic energy to the vanes. This energy extraction helps convert the thermal energy of the gases into mechanical energy that can be used to drive the engine.

Temperature Management: The guide vanes also play a role in managing the temperature of the gases as they move through the engine. They help guide the gases away from sensitive engine components that may be prone to overheating.

Aerodynamic Efficiency: The design of the guide vanes is critical for maintaining the aerodynamic efficiency of the engine. Their shape and positioning impact the overall airflow and pressure distribution within the engine.

Material Properties: Nickel-based superalloys, such as Inconel, are commonly used for manufacturing guide vanes due to their exceptional high-temperature mechanical properties, corrosion resistance, and ability to withstand the harsh conditions within the engine.

Precision Manufacturing: Guide vanes require precise manufacturing techniques, often involving advanced casting or additive manufacturing processes, to achieve the desired aerodynamic profiles and cooling features.

Cooling Mechanisms: Many guide vanes are designed with internal cooling channels to manage the high temperatures they encounter. These cooling channels help maintain the structural integrity of the vanes while operating in extreme conditions.

Aerospace Applications: Nickel alloy guide vanes are used in aero engines for commercial and military aircraft, as well as in industrial gas turbines for power generation and other applications.

In summary, nickel alloy guide vanes are essential components in the design of gas turbine engines, contributing to the efficient and safe operation of aircraft and other machinery. Their function in directing and extracting energy from hot gases, combined with their high-temperature material properties, makes them a critical part of modern aerospace technology.
