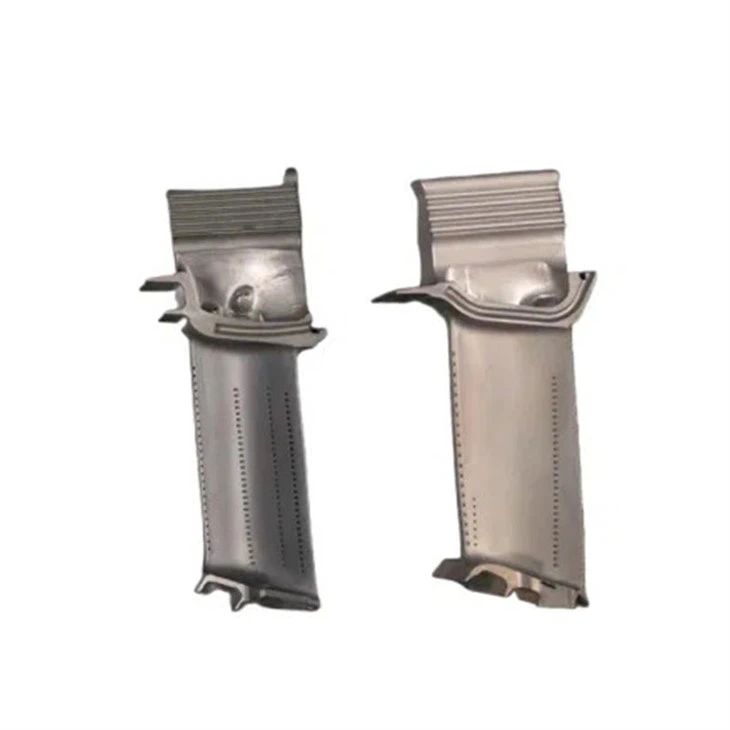

Equiaxed Crystal Casting Blade
Manufacturing Method Of Single Crystal Turbine Blade
The following are common manufacturing processes for single crystal turbine blades:
Single crystal growth: CZ method (CZ method), zone melting method (FZ method) and Bridgman method can be used to grow single crystals
Blade processing:
Casting: For smaller blades, it can be cast directly from a single crystal material. But this presents a challenge to size control and shape accuracy.
Cutting: The single crystal material is very hard and brittle, so it needs to be cut with diamond tools. This requires highly accurate machine tools and specialized processing technology.
Edm: A contactless machining method that uses electrical discharge to remove material and can be used to make blades of complex shapes.
Laser processing: Laser processing can be used for cutting, engraving and welding, and can be used for fine machining of single crystal blades.
Blade surface treatment:
Heat treatment: In order to improve the heat resistance and strength of the blade, heat treatment is required.
Surface coatings: Commonly used coating materials include ceramic coatings, metal coatings and composite coatings to improve durability.
Blade detection and inspection:
Non-destructive testing: Use X-ray, ultrasonic and other methods to detect whether there are defects inside the blade.
Performance test: The strength, heat resistance and fatigue properties of the blades are tested to ensure that they meet the requirements.
|
Product Name
|
Haynes230 Inconel 597 francis turbine blades jet engine turbine blades steam turbine blade types
|
|
Tolerance
|
CNC Machining ±0.004mm/Casting ±0.1mm
|
|
Place of Origin
|
Qingdao, Shandong, China
|
|
Processing Craft
|
Sand Casting/Lost Wax Casting/Investment Casting/Vacuum Casting/Forging/CNC Machining/etc
|
|
Surface Treatment
|
A variety of surface treatments and coatings can be produced and customized according to your requirements.
|
|
Type
|
OEM; Customized
|
|
Certification
|
ISO9001:2015 Certified, UL Certification,GE,SGS,TUV,etc
|
|
Packing
|
Carton/Wooden box
|
|
Inspection
|
1.Foundry in-house: 100% inspection on critical dimension; 100% on appea rance.
|
|
2.Third Party inspection available upon requirement.
|
|
|
3.Optional X-ray detection
|
|
|
4.Fluorescence detection
|
|
|
Service
|
Drawing Custom
|
|
Mainly Testing Facility
|
Spectrometer,CMM, Tensile testing machine, Impact tester,Hardness tester,X-Ray,Salt spray test box, Pneumatic detection,UV
accelerated weathering tester,dynamic balancing, high-temperature tensile testing,fluorescence test,room temperature mechanical property testing and other testing. |
|
Quality Guarantee
|
2 Years
|
|
Features & Advantage
|
1.High machining accuracy, the flatness within 0.001mm
|
|
2.High finish appearance, smooth surface roughness is Ra0.6 after machining.
|
|
|
3.The machining precision is high and the assembly structure is seamless.
|
|
|
4.Smooth appearance, corrosion resistance.
|
|
|
5.Pass Salt Spray Test with 144 Hours.
|
|
|
Standard
|
ISO , DIN, AISI, ASTM, BS, JIS, etc.
|
|
GB/T 14992 GJB 5512.1 HB 7763 HB/Z 140
|
|
|
Payment
|
L/C,D/A,D/P,T/T,Western Union,Money Gram
|
|
Name
|
Inner Cavity Cooling Channel Coating
|
External Surface Coating
|
|
Nickel Aluminum Diffusion Coating
|
MTK-NAI
|
MTK-WAI
|
|
Aluminum Silicon Diffusion Coating
|
MTK-NAISi
|
MTK-JAISi
|
|
Chrome Aluminum Diffusion Coating
|
MTK-NAICr
|
MTK-WAICr
|
|
Diamond Aluminum Diffusion Coating
|
MTK-NAICo
|
MTK-WAICo
|
|
Platinum Aluminum Diffusion Coating
|
|
MTK-WPtAl
|
|
Aluminum Diffusion Coating
|
MTK-NAITi
|
MTK-WAITi
|
|
Q Salt Electroplating Platinum
|
|
MTK-WPt
|
|
Compressor Inorganic Phosphate Coating
|
|
MTK-WAI
|
|
MCrAIY Coating Technology
|
|
MTK-RZ
|
|
TBC
|
|
MTK-TBC
|
|
CVD Vapor Phase Aluminizing
|
|
|
|
Chromated Aluminum Coating Technology
|
|
|
|
Alloy Type
|
Alloy
|
US
|
|
Equiaxed Crystal Blades
|
K438
|
Inconel 738
|
|
|
K438G
|
K38G
|
|
|
K435
|
|
|
|
K488
|
|
|
|
K418
|
Inconel 713C
|
|
|
FSX-414
|
|
|
Oriented crystal blades
|
DZ38G
|
|
|
|
DZ411
|
|
|
|
DZ466
|
|
|
Single crystal blade
|
DD8
|
|
|
|
DD83
|
|
|
|
DD5
|
|
