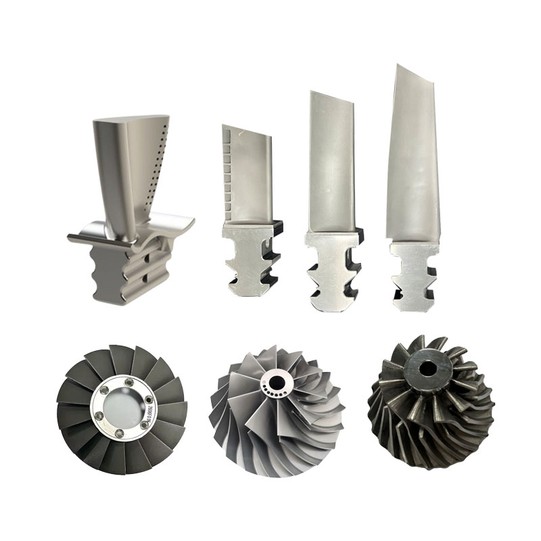

Steam Compressor Turbine Blade

A gas compressor turbine blade is a crucial component in gas turbine engines used for power generation, aviation, and other industrial applications.

Material: Gas compressor turbine blades are typically made from advanced materials, often high-temperature alloys like nickel-based superalloys (e.g., Inconel). These materials provide excellent strength, corrosion resistance, and can withstand the high temperatures and stresses encountered in the turbine.

Aerodynamic Design: The blades are carefully designed to have an aerodynamic profile that allows them to efficiently extract energy from the high-velocity gases passing through the turbine. The shape, angle, and arrangement of blades are optimized for maximum efficiency and energy extraction.

Cooling Mechanisms: Due to the high temperatures generated during combustion, gas turbine blades are often subjected to extreme heat. Internal cooling passages or external film cooling methods are employed to manage temperatures and prevent overheating, ensuring the longevity of the blades.

Precision Manufacturing: Gas compressor turbine blades are manufactured with high precision using advanced techniques such as precision casting or advanced machining processes. The precision is essential for maintaining the required aerodynamic profiles and structural integrity.

Attachment to the Disk: The turbine blades are attached to a turbine disk, and the assembly is often referred to as a turbine rotor. The attachment must be secure to withstand the high rotational speeds and loads experienced during operation.

Dynamic Balancing: The turbine rotor, including the blades, undergoes dynamic balancing to ensure even distribution of mass and prevent vibrations. Dynamic imbalance could lead to mechanical failures and negatively impact the performance and reliability of the gas turbine.

Operational Environment: Gas compressor turbine blades operate in a high-stress environment, subject to rapid temperature changes, high-speed rotations, and varying pressures. They must withstand these conditions while maintaining structural integrity over the engine's operational life.

Function: In a gas turbine engine, the compressor turbine blades are responsible for extracting energy from the hot, high-pressure gases produced during the combustion process. This extracted energy is used to drive the compressor, which compresses incoming air, initiating the next cycle of the engine.
