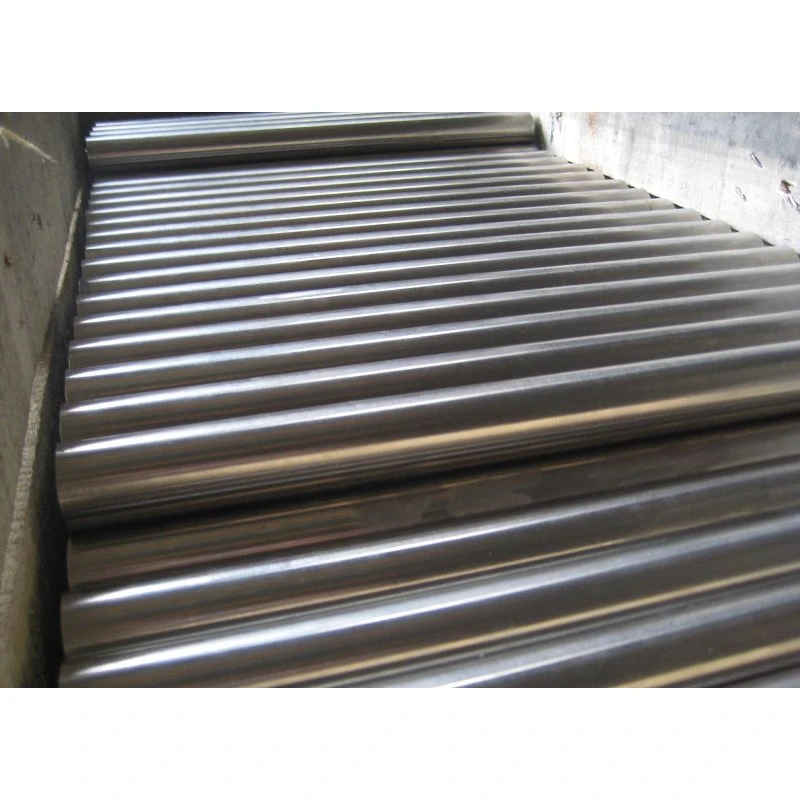

1J22 Bar

1J22 is a soft magnetic alloy with high saturation magnetic induction

Among the existing soft magnetic materials, the alloy has the highest saturation magnetic induction (2.4T), high Curie point (980°C), and the largest saturation magnetostriction coefficient (60-100×10-6). Due to the high saturation magnetic induction, the size can be greatly reduced when making a motor with the same power, and when it is used as an electromagnet, it can generate a large attraction force under the same cross-sectional area. Due to the high Curie point, the alloy can work at a higher temperature where other soft magnetic materials have been completely demagnetized, and maintain good magnetic stability.

Due to the large magnetostriction coefficient, it is extremely suitable as a magnetostrictive transducer, with high output energy and high working efficiency. The alloy has a low resistivity (0.27μΩ·m) and is not suitable for use at high frequencies.

1J22 Similar Grades：

Russia: 50КФ

China: 1J22

USA: Hiperco50

United Kingdom: Permendur

Typical values(Weight %)

Magnetic properties (after heat treatment)

Application field

• Aviation and aerospace components

• Micro-motor rotors, electromagnet poles, relays, transducers, etc.

• Telephone headset diaphragm
