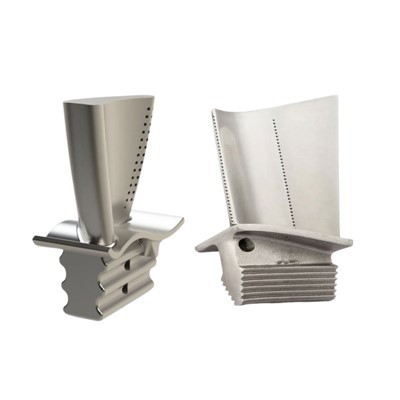

Turbine Nozzle Guide Vanes

Guide vane is widely used, mainly including the following aspects:

• Turbine: In turbine engines and steam turbines, used to direct air flow and improve efficiency and power output.
• Fan: Used in ventilation and air conditioning systems to optimize airflow and improve air delivery efficiency.
• Pumps: In some types of pumps, guide vanes help direct the flow of water and raise the flow and pressure.
• Heat exchanger: By changing the flow path of fluid, improve the efficiency of heat exchange.
• Ship propulsion: In the ship's propulsion system, guide vane helps to improve the flow of water and increase propulsion efficiency.
• Automotive supercharger: In a turbocharging system, the guide vane optimizes airflow and improves engine performance.

The design and application of guide vane aims to improve the efficiency and performance of equipment and reduce energy consumption.

The advantages of guide vane manufacturing technology and material are mainly reflected in the following aspects:

Process of manufacture：

1. Mold forming: Use precision molds for casting or injection molding to ensure the geometric shape and dimensional accuracy of guide vane.
2. Machining: improve the smoothness and accuracy of guide blade surface and reduce aerodynamic loss through CNC machining and other processes.
3. Heat treatment: Through heat treatment to improve the strength and wear resistance of materials, extend the service life.
4. Surface treatment: Use spraying, coating and other technologies to enhance the corrosion resistance of guide vars.

Advantages of materials：

1. Lightweight: Commonly used aluminum alloys and composites have lower density and reduce the overall structural weight.
2. High strength: Some alloy materials (such as titanium alloy) have good strength and toughness, suitable for high load conditions.
3. Corrosion resistance: Stainless steel and specialty alloys perform well in harsh environments, reducing maintenance requirements.
4. Good formability: some plastics or composite materials are easy to shape and adapt to complex design requirements.

Through the combination of the above processes and materials, guide vane can not only effectively improve the hydrodynamic performance, but also meet the needs of a variety of industrial applications.
